SUPERHANGER™
PATENTED PVC &
FRP PIPE HANGERS

The Perfect Solution for supporting your plumbing

Steel Rusts, PVC and Fiberglass Don't.

“There’s no other pipe hanger like it!” Lee Composites, Inc. introduces the PVC Super Hanger™ pipe hanger system. The Super Hanger™ pipe hanger is comprised of all nonmetallic, corrosion resistant materials and maintenance free properties.

The patented Super Hanger™ pipe hanger design allows for ease of installation on both new and used pipe, structural strength for pipe loadings and sizes to support various pipe diameters. They come in multiple sizes and are ready for immediate availability.

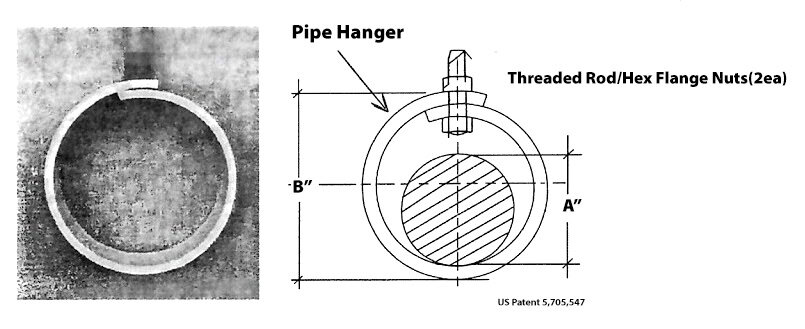

SUPER HANGER™ PVC PIPE HANGER

Super Hanger™ pipe hanger is comprised of all nonmetallic, corrosion resistant materials and maintenance free properties. Sizes available for 1″ to 10″ pipe size.

The patented Super Hanger™ pipe hanger design allows for ease of installation on both new and used pipe, structural strength for pipe loadings and sizes to support various pipe diameters. They come in multiple sizes and are ready for immediate availability.

Request Quote
Download Data Sheet
Part Number
Pipe Size ‘A’
Hanger Size ‘B’
Design Load
Hanger Rod Size
Design Loads are based on minimum ultimate hanger failure safety factor 3:1
SH001
3/4″ -1″
3″
100#
3/8″
SH015
1-1/4″ – 1-1/2″
4″
400#
3/8″
SH002
2″
4″
450#
3/8″
SH002A
2″
5″
650#
1/2″
SH003
3″
5″
450#
3/8″
SH003A
3″
6″
650#
1/2″
SH004
4″
8″
450#
3/8″
SH004A
4″
6″
650#
1/2″
SH006
6″
10″
650#
1/2″
SH008
8″
12″
650#
5/8″
SH010
10″
14″
650#
5/8″

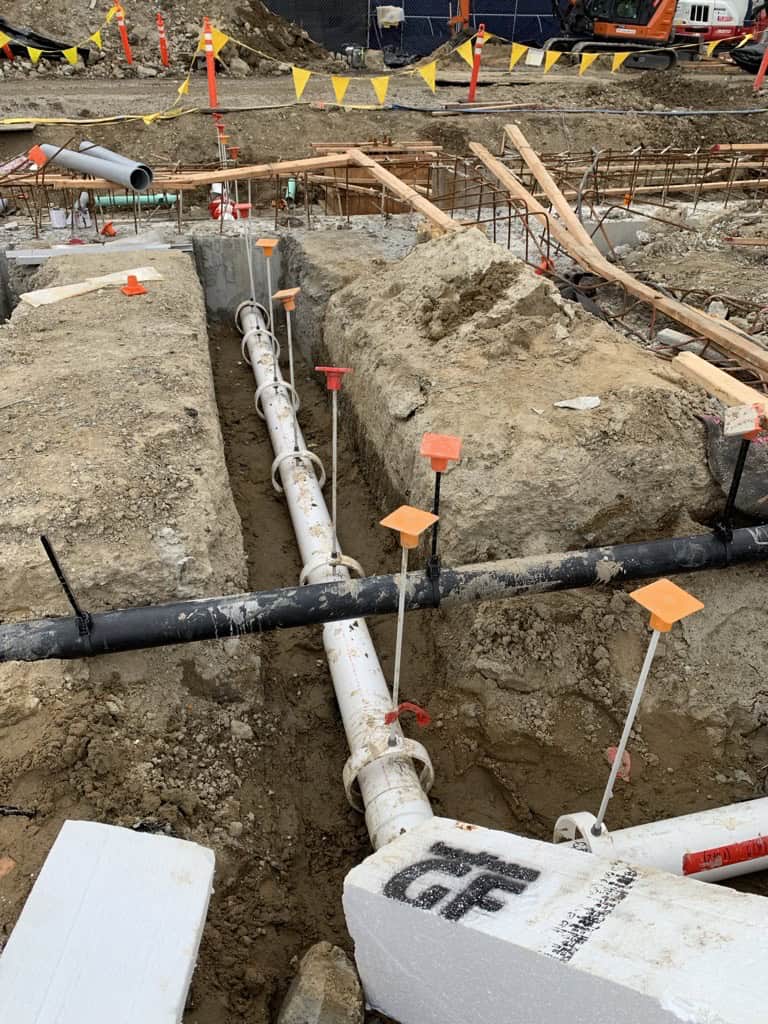

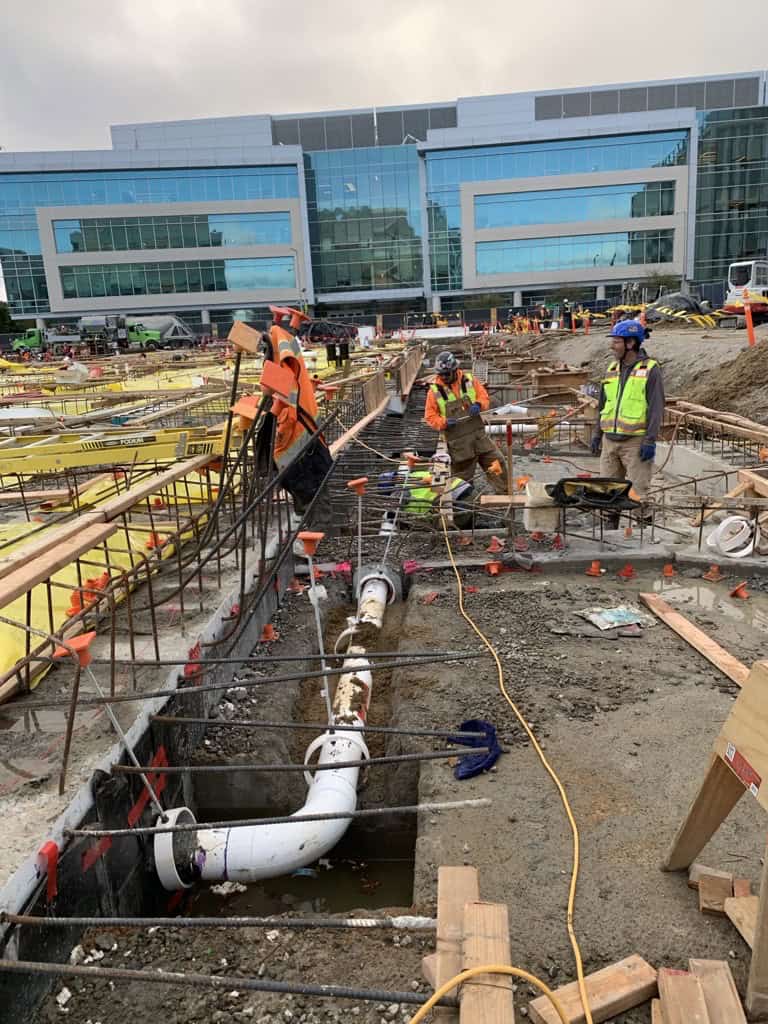

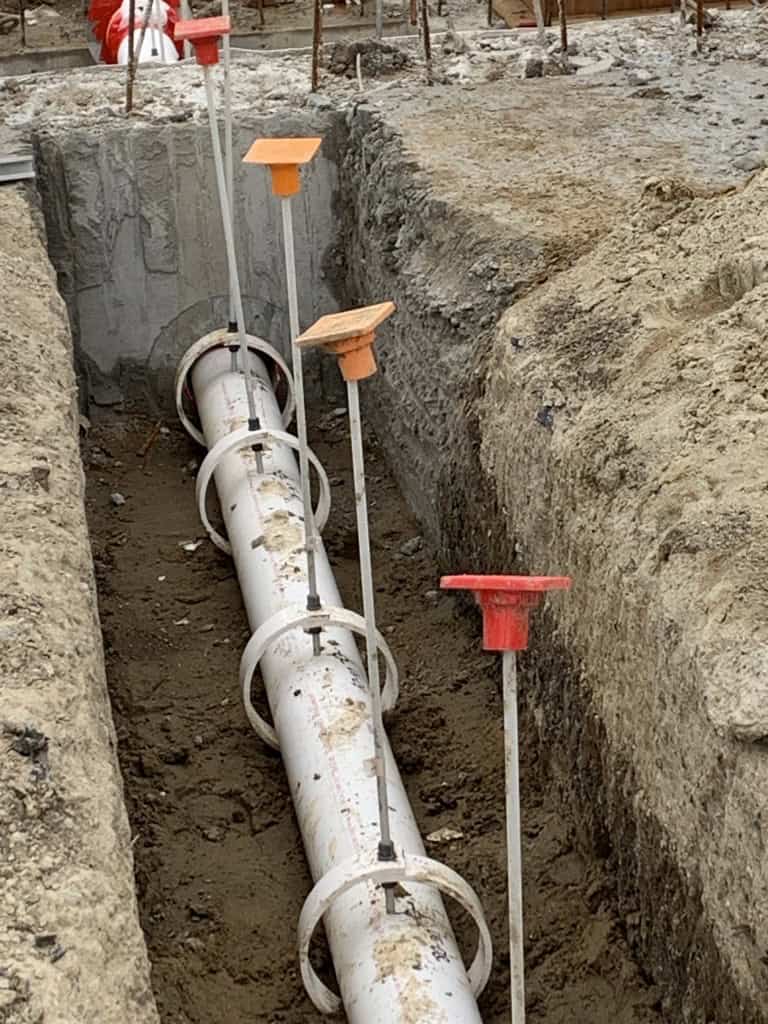

SUPER HANGER™ Installation Gallery
SUPER Loop™ fiberglass pipe HANGER

For larger pipes, use Super Loop Fiberglass Pipe Hangers. The Super Loop Hanger is available for sizes 12″, 14″, 16″ diameter pipes..

The Super Loop Fiberglass Pipe Hanger is great for industrial applications or commercial drainage pipes, where pipes sizes are considerably larger. The biggest advantage of using the Super Loop Fiberglass Pipe Hanger is that in any environment the Super Loop Fiberglass Pipe Hanger performs better than metallic counterparts, because of its rust-free properties.

Request Quote
Download Data Sheet
Part Number
Pipe Size
Hanger O.D
Hanger Rod
Load (LBS)
Ultimate Load (LBS)
SLH1200
12″
13-1/2″
3/4″
1330 lbs
3990 lbs
SLH1400
14″
14″
1″
1500 lbs
4500 lbs
SLH1600
16″
16″
1″
2070 lbs
6210 lbs

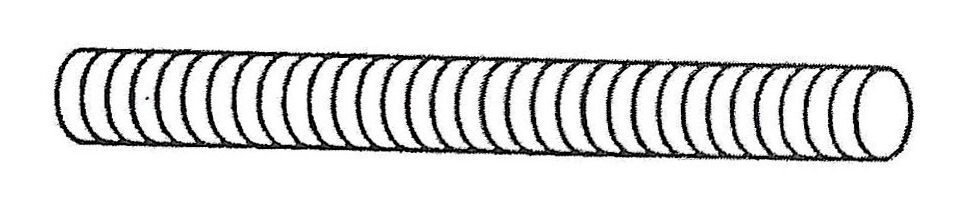

SUPER ROD fiberglass hanger rod

Use the Super Rod Fiberglass Threaded Hanger Rod and Super Nut Hex Flange Nut for a complete pipe hanger system.

Sizes available from 3/8″ to 1″ in diameter and 96″ in length.

Request Quote
Download Data Sheet
Part Number
Description
Thread Shear Strength Using FRP Nut in Tensile, lbs.
TR375
3/8″ Vinylester Fiberglass All-Thread x 8′
1,250
TR500
1/2″ Vinylester Fiberglass All-Thread x 8′
2,200
TR625
5/8″ Vinylester Fiberglass All-Thread x 8′
3,100
TR750
3/4″ Vinylester Fiberglass All-Thread x 8′
4,500
TR1000
1″ Vinylester Fiberglass All-Thread x 8′
6,500

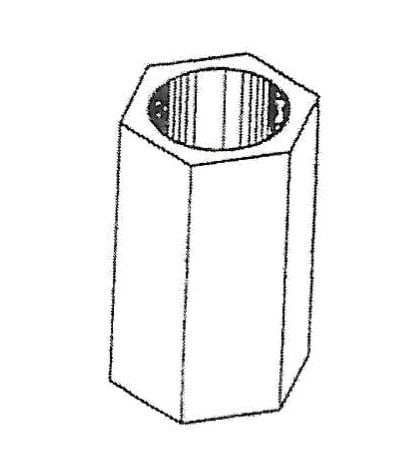

Threaded Rod Coupler

Part Number
Description
Thread Shear Strength, lbs.
CU375PU
3/8″ All-Thread Coupler
1,250
CU500PU
1/2″ All-Thread Coupler
2,200
CU625PU
5/8″ All-Thread Coupler
3,100
CU750PU
3/4″ All-Thread Coupler
4,500
CU1000PU
1″ All-Thread Coupler
6,500

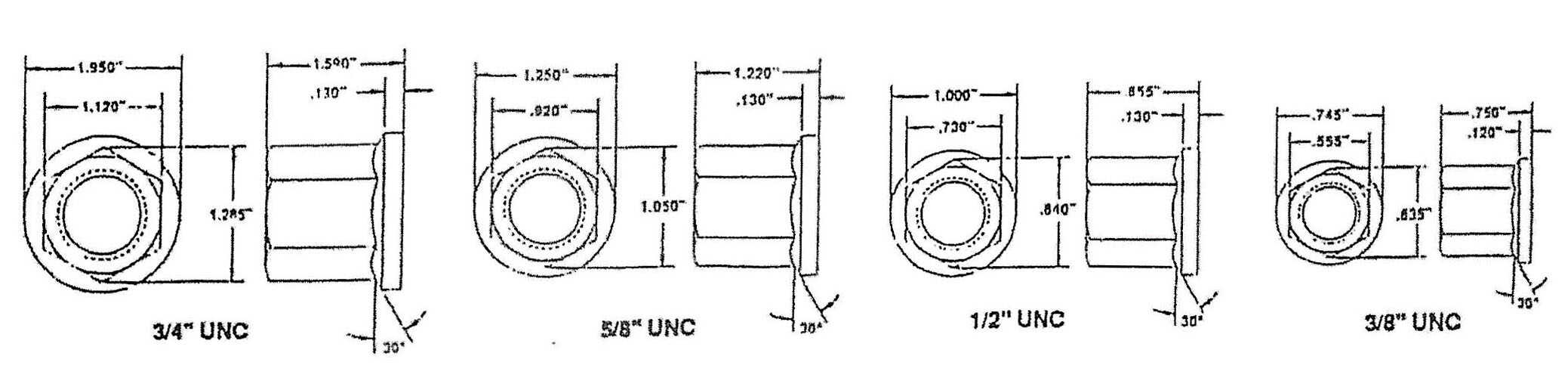

SUPER NUT fiberglass hex flange nut

Use the Super Rod Fiberglass Threaded Hanger Rod and Super Nut Hex Flange Nut for a complete pipe hanger system.

Sizes available from 3/8″ to 1″ in diameter.

Request Quote
Download Data Sheet
Part Number
Description
FN375
3/8″ Hex Flange Nut
FN500
1/2″ Hex Flange Nut
FN625
5/8″ Hex Flange Nut
FN750
3/4″ Hex Flange Nut
FN1000
1″ Hex Flange Nut
Other Accessories

Lee Composites, Inc. also offers the following pipe hanger system accessories:

  • Strut (channel framing)
  • Strut Fittings
  • Beam Clamps
  • U-Bolts
  • Strut Nuts
  • Strut Floor Bases
  • Pipe Clamps
  • Pipe Straps
Request Quote
Rust Resistant
Highly corrosion resistant. Predicted to have a 75+ year service life
Low Maintenance
Does not corrode, decay or spall thereby reducing maintenance costs
UV Protection
Sheet piles are shipped standard with two layers of Ultra Violet (UV) protection
Lightweight
High strength-to-weight ratio with panels weighing only 3-5 pounds per square foot.
Easy to Transport
Stackable panels make it easy to transport and store at construction site
Environmentally Friendly
SuperLoc® is inert and will not leach dangerous chemicals into the environment.
Fiberglass reinforcements
All composite sheet piles are manufactured with electrical grade E-glass reinforcements
Advanced UV Protection
FRP Sheet piles are shipped standard with two layers of Ultra Violet (UV) protection
High-Strength, and stiffness
Engineered for optimal bending strength, as well as superior stiffness
Relatively EASy on-site assembly
FRP Sheet Piles can be Drilled and cut with traditional tools in seconds
